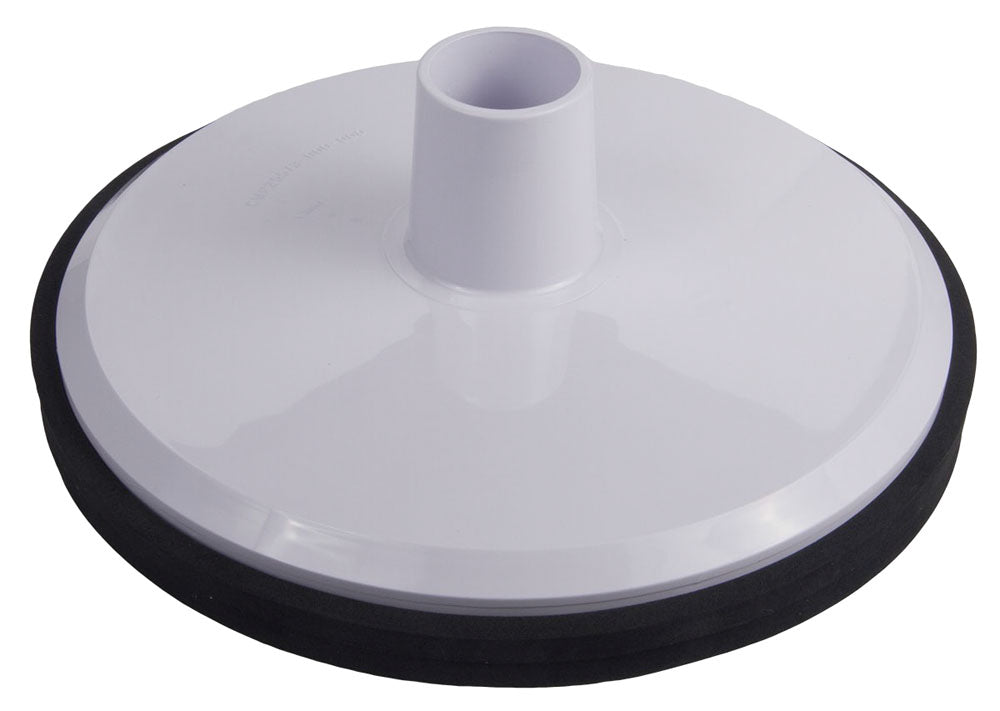

CMP 25573-100-000 White Suction Plate for Skimmer

The CMP vacuum plate 25573-100-000 designed to allow direct connection of a vacuum hose to the pool skimmer.

White in color and equipped with a foam gasket, it is a convenient replacement part for several inground skimmers Compatible with CMP and Hayward .

This plate allows the pool vacuum to be used without removing the skimmer basket, helping to retain large debris before it reaches the pump and filtration system.

Vacuum plate for inground pool skimmer

The plate is positioned above the skimmer basket to create a connection point for the vacuum hose.

It helps maintain good water circulation during manual pool cleaning and allows the basket to continue collecting leaves and larger debris.

Replacement for CMP and Hayward skimmers

The CMP 25573-100-000 can replace the vacuum plate of several CMP and Hayward skimmer models with the same dimensions and type of connection.

Before ordering, it is important to check:

• Outer diameter of the current plate
• Diameter of the hose connection
• Shape of the plate
• Skimmer model
• Existing part number
• Presence of a foam gasket

Compatibility must be confirmed based on the dimensions and configuration of your installation.

Foam gasket included

The plate is equipped with a foam gasket designed to ensure a good seal on top of the skimmer basket.

A good seal is essential to maintain effective suction and prevent air from entering the filtration system.

Main advantages

• Vacuum plate for inground skimmer
• Allows connection of a vacuum hose
• Installs above the skimmer basket
• Helps retain large debris in the basket
• Foam gasket included
• Right installation
• White color
• CMP replacement part
• Compatible with several CMP and Hayward skimmers
• Ideal for maintenance and targeted repairs

Recommended checks before purchase

To avoid incompatibility, compare the new plate with the currently installed part.

Check especially:

• Overall plate diameter
• Central opening size
• Fitting position
• Plate height
• Gasket style
• The skimmer manufacturer and model

Even if two plates look alike, their dimensions may differ.

Installation and use

1. Turn off the pool pump.
2. Remove the skimmer lid.
3. Check that the basket is clean and properly installed.
4. Completely fill the vacuum hose with water.
5. Position the plate on the skimmer basket.
6. Connect the hose to the plate opening.
7. Restart the pump and check suction.
8. After cleaning, remove the plate and empty the basket.

Never operate the pump if the water flow is insufficient or if air enters the system.

Inspection of adjacent components

When replacing the vacuum plate, take the opportunity to check:

• Condition of the skimmer basket
• Foam gasket
• Vacuum hose
• Fittings
• Skimmer lid
• Support surfaces
• Presence of cracks or wear

A damaged adjacent component can reduce suction efficiency, even if the plate is new.

Technical specifications

Product
Skimmer vacuum plate

Manufacturer
Custom Molded Products

Brand
CMP

Part number
25573-100-000

Type
Skimmer Vacuum Plate

Configuration
Right

Gasket
Foam gasket included

Color
White

Application
Skimmer for inground pool

Compatibility
Several compatible CMP and Hayward models

Package contents

• 1 white CMP vacuum plate
• 1 foam gasket

The skimmer basket, vacuum hose, and other accessories are sold separately, unless otherwise indicated.
