Hardware kit for above ground pool solar roller

Simplify rolling and unrolling your solar cover with this above-ground pool solar reel hardware set.

Designed to complement a new installation or replace worn components of an existing reel, this set includes the main accessories needed to create a stable, practical, and easy-to-use system.

The two wheels with cranks let you rotate the telescopic tube with less effort, while the bases and post supports keep the assembly in place around the pool.

Important: The telescopic tube and posts are not included. They are sold separately.

Handle your solar cover with ease

A solar reel lets you remove and replace the cover more quickly than handling it entirely by hand.

This set helps you:

• Roll up the solar cover more easily
• Reduce the effort required
• Keep the cover better organized
• Make it easier to access the pool
• Protect the cover from excessive handling
• Replace damaged components of an existing system

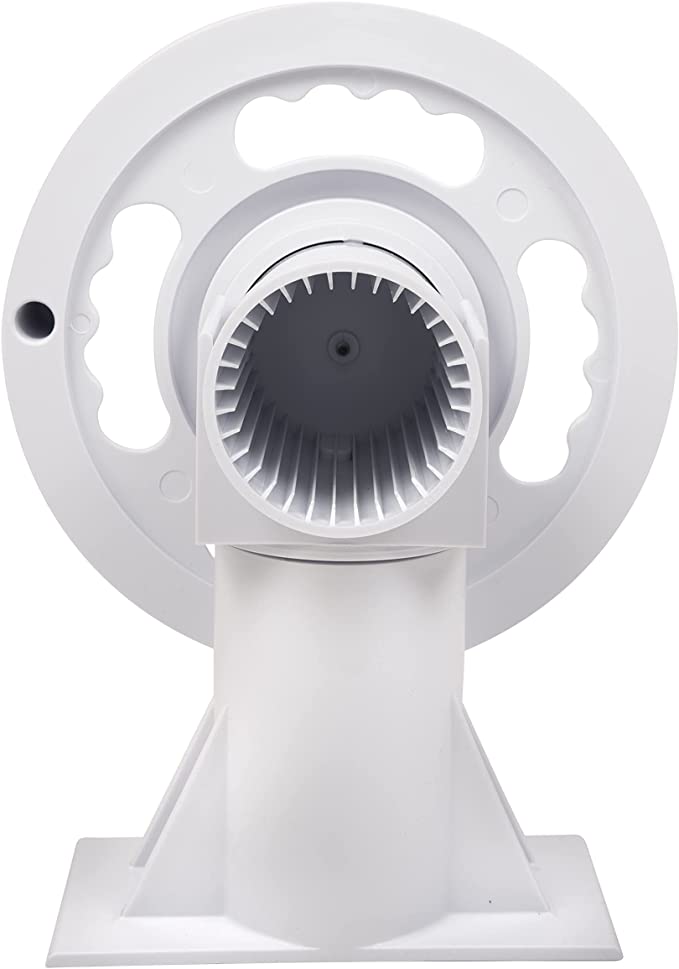

Two wheels with integrated cranks

The set includes two wheels equipped with cranks for rotating the reel tube.

This design offers:

• A comfortable grip
• Smoother rotation
• Easy handling from both sides
• Better control of the rolling process
• Convenient everyday use

The cover must be centered and attached evenly so that it rolls properly onto the tube.

Bases and post supports included

The sturdy bases and post supports help keep the system stable around the pool.

The supports are designed to accommodate compatible posts.

The posts are not included in the set.

Before installation, check:

• The diameter of the posts used
• The configuration of the pool edges
• The available space around the pool
• The desired position of the reel
• Compatibility with the telescopic tube

Straps and fittings included

The nylon straps connect the solar cover to the telescopic tube.

They help distribute tension across the entire width of the cover to promote even rolling.

The plastic fittings and hardware required for assembly are also included, depending on the model configuration.

Compatible with several telescopic tubes

This set is designed for use with several compatible standard telescopic tubes intended for above-ground pools.

Before ordering, check:

• The tube diameter
• The wheel mounting system
• The length of the tube
• The width of the pool
• The weight and dimensions of the solar cover
• The model of your current system

Universal compatibility cannot be guaranteed with all tubes and reel systems.

Ideal for a new installation or repair

This kit can be used to:

• Create a new solar cover reel
• Replace damaged cranks
• Replace worn bases or supports
• Repair an existing reel
• Modernize an older system
• Reuse a telescopic tube that is still in good condition

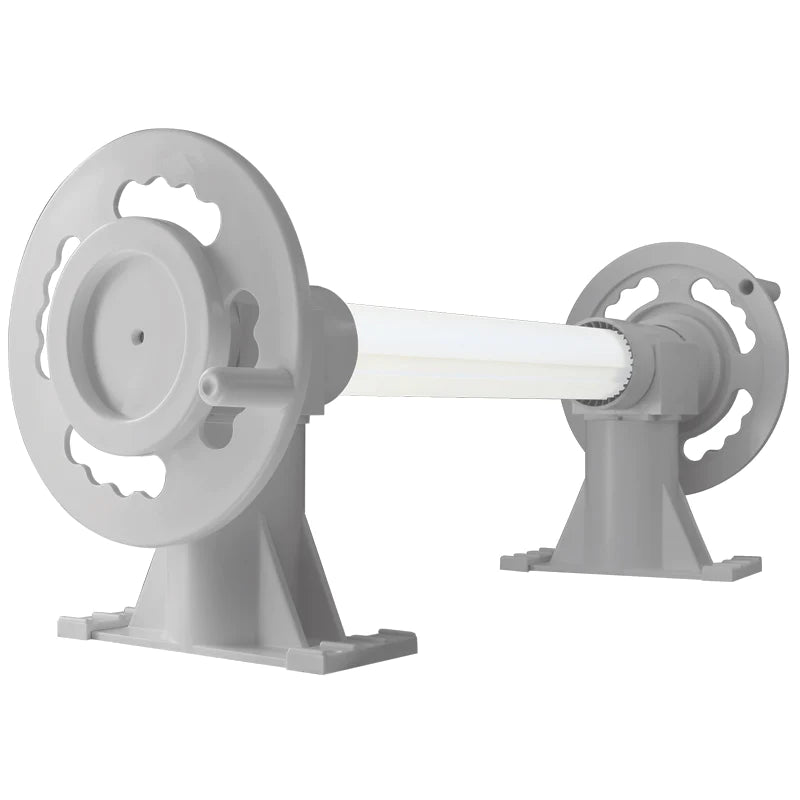

General installation

1. Choose the reel’s location.
2. Install the bases on each side of the pool.
3. Insert the compatible poles into the supports.
4. Assemble the telescopic tube sold separately.
5. Attach the tube to the wheels and cranks.
6. Position the solar cover on the pool.
7. Distribute the straps evenly along the tube.
8. Attach the straps to the cover.
9. Test the rolling process slowly.
10. Adjust the strap positions as needed.

Always follow the instructions provided with the selected model.

Tips for even rolling

For best results:

• Center the cover on the tube
• Space the straps evenly
• Remove accumulated water from the cover
• Roll it up slowly and evenly
• Avoid pulling the cover over abrasive surfaces
• Do not force the cranks if the cover is stuck
• Regularly check the straps and hardware

Recommended maintenance

To extend the system’s service life:

• Rinse the components with clean water
• Check the screws and fasteners
• Tighten the hardware as needed
• Inspect the straps for signs of wear
• Protect the components from impacts
• Remove and store the system before winter
• Store the parts in a dry place

Key benefits

• Solar cover reel hardware kit
• Designed for above-ground pools
• Two wheels with integrated cranks
• Two sturdy support bases
• Two pole supports
• Nylon straps included
• Plastic fasteners included
• Installation hardware included
• Compatible with several standard telescopic tubes
• Ideal for a new installation or replacement
• Telescopic tube sold separately
• Poles not included

Technical specifications

Product
Solar cover reel hardware kit

Pool type
Above-ground pool

Models
ACM-133 / ACM-133G

Use
Installation or replacement of a solar cover reel system

Materials
Sturdy plastic, nylon, and hardware components

Telescopic tube included
No

Poles included
No

Installation
Assembly required

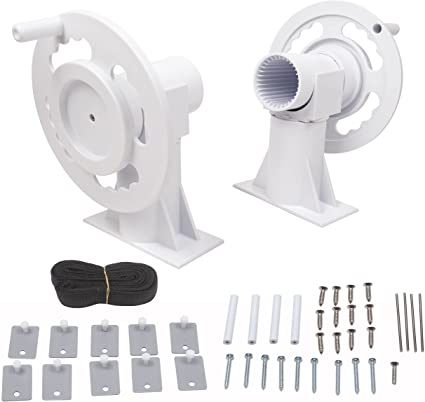

Kit contents

• 2 wheels with integrated cranks
• 2 support bases
• 2 pole supports
• Nylon straps
• Plastic fasteners
• Assembly hardware

The telescopic tube, poles, and solar cover are sold separately.

Simplify the use of your solar cover

This hardware kit is a practical solution for installing or restoring an above-ground pool solar cover reel.

With its two cranks, sturdy bases, and mounting accessories, it makes it easier to handle the solar cover and enjoy the pool sooner.

Available at Piscine Hippocampe.
